Click to configure > Results

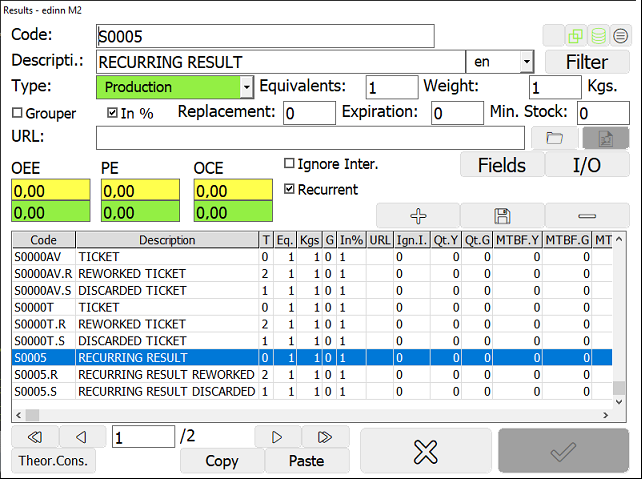

The results configuration window allows configuration of all possible results, including the good and the bad (rework and scrap). Also inputs and outputs of a process are results, so they must also be configured here. Please see the difference between consumptions and inputs.

In the lower part: you will see a grid with the results already configured, on which you can perform operations on the grid such as Insert, Save or Delete.

In the upper part: you will see the configuration of each record, where you can configure the parameters of a new insertion or edition.

CONFIGURATION PARAMETERS:

    • Code and description: Code and description or name of the result.
    • Language.
    • Filter button: to filter the results by the parameters established.
    • Type: to indicate if the result is production, a rework or scrap.
    • Equivalence: every production counting is equivalent to how many pieces. For example: 1 unit (a box) is equivalent to 6 pieces.
    • Weight: weight of each piece (equiv.).
    • Grouper check: if this result will be used to group results.
    • In % check: if production is measured in %. Useful for results with a large cycle time (days or months) and to allow the working user to provide periodical advance of his work.
    • URL: document or application that will be opened when the user clicks on the that appears after having clicked on the result, on the results window. Please see how to configure URLs. URLs can be selected from and its syntax can be cheched from the button .
    • Ignore Inter. check: marks the result as to be ignored when transferring from and to information to another system, like ERPs. Please see integration with other systems.
    • Ratios configuration (OEE, PE, OCE): green and yellow targets for the OEE and PE (is the same as the OEE but without considering idle statuses) and OCE ratios for the areas. By clicking any of these fields, more targets will appear: please see Ratios configuration.
    • Fields: to configure new and customized fields, that allow the user to adapt the platform to a specific industry. For more information, please see: Fields Configuration.
    • I/O: allows to define the pattern of inputs and outputs to generate this result.
    • : there can be so many pages of results, you can use the selector of page to navigate faster within them.
    • Theor. cons.: to configure the theoretical consumptions for the selected process. Please see: Theoretical Consumption.
    • Replacement: time it takes for the material to arrive since the order is placed (in days).
    • Expiration: time in which a material expires since it is manufactured (in days).
    • Min. Stock: minimum stock below which a new order must be placed.
    • Recurrent: if this result will be recurring. Task or work orders which are marked as recurring can only generate recurring results.
