In [Click to configure] select [Results]. To create and configure results, complete the following configuration.

Step 1. List all the items

A same product can have different types of results: Good results (Production) & Bad results because of quality reasons (Rework (product that needs to be reworked) & Scrap (product discarded))

List all the products that your process produces for each type of result, e.g:

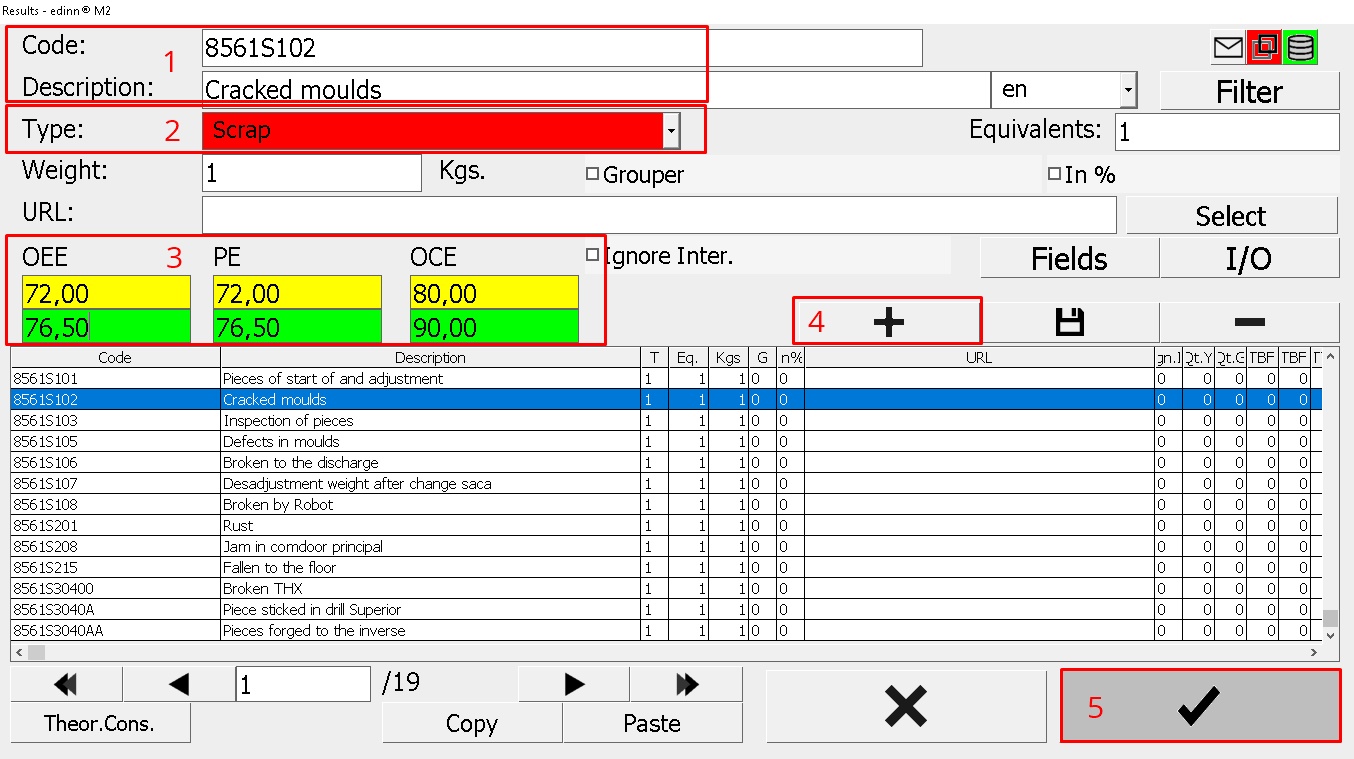

Step 2. Enter the list in edinn

    1. Code & Description: write a result code (e.g: PROD1) and a description (e.g: Product 1). Add "SCRAP" or "REWORK" to the description or ".S" or ".R" to the result code for better differenciation.
    2. Type: indicate if the result is a production, a rework or scrap. Mandatory: configure at least 1 Scrap result for each Production type.
    3. Configure the OEE for the result.

Step 3. Save changes

    1. Press to insert in the table the configuration of the result. Repeat this action for each result produced.
    2. When all the changes have been done, press the button.

NOTE: Please see Results configuration for deeper configuration.
