edinn Platform: User Guide

Click to configure > PR relations

Process-Results relations mean the specific information needed when a process is producing a specific result. This is useful when it is needed to have certain characteristics (the ones present on this window) specific for certain results.

NOTE: for more information please see particularization through relations.

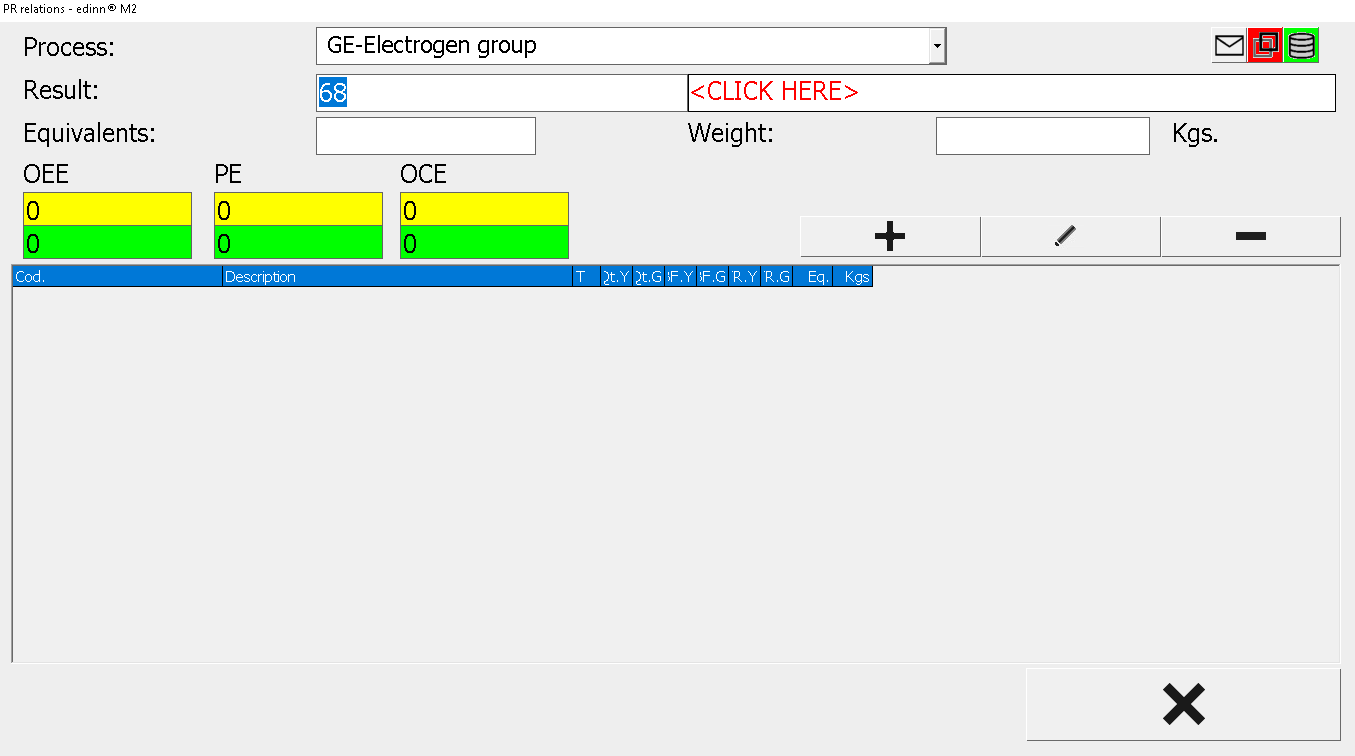

In the lower part: you will see a grid with the relations between Processes and Results already configured, on which you can perform operations on the grid such as Insert, Save or Delete.

In the upper part: you will see the configuration of each record, where you can configure the parameters of a new insertion or edition.

CONFIGURATION PARAMETERS:

• Process: for which the result is related.
• Code and description of the related result.
• Equivalents and Weight: characteristics of results configuration, that can be specifically changed when the result is being generated on a certain process.

• Ratios configuration (OEE, PE, OCE): green and yellow targets for the OEE and PE (is the same as the OEE but without considering idle statuses) and OCE ratios for the areas. By clicking any of these fields, more targets will appear: please see Ratios configuration.
