This procedure details the steps for creating a new scrap result. Creation of rework results is identical only changing the type of result to rework.

Step 1: Result Configuration

    1. Click on the button from the Main Window of the Terminal.
    2. Select Results in the list of CLICK TO CONFIGURE dropdown.

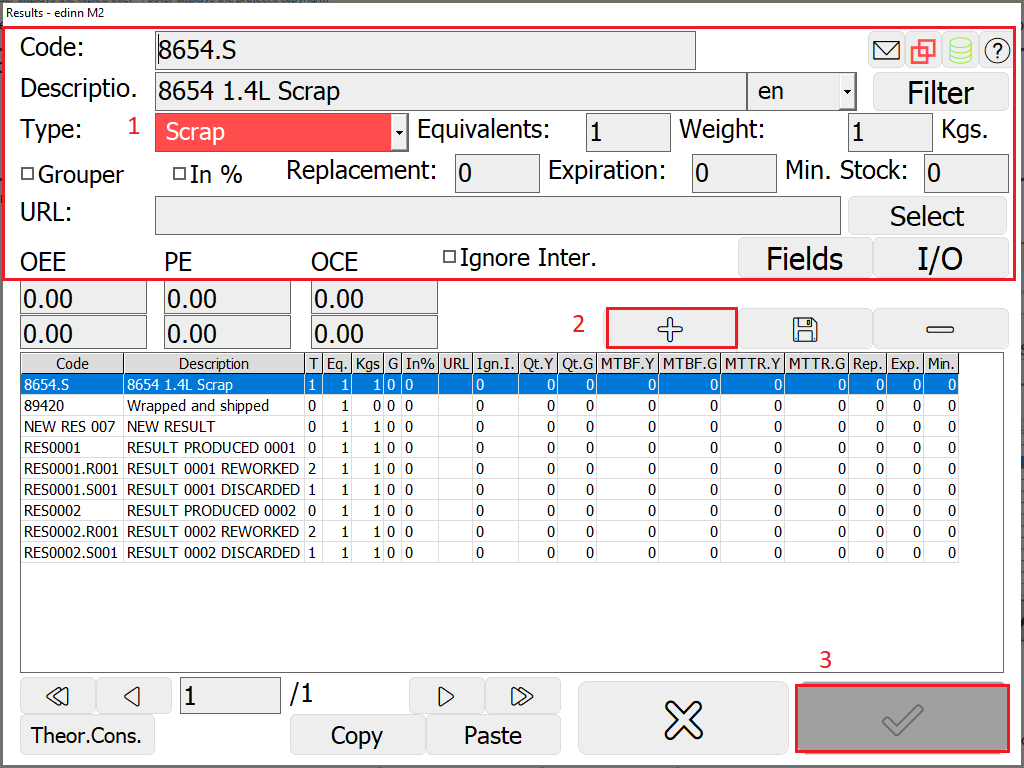

Step 2: Fill-in the fields

    1. Basic fields to fill:
      • Code: result code, generally ".S" is added to indicate a Scrap result.
      • Description: description or name of the result. Generally "SCRAP" is added to the description to indicate a Scrap result.
      • Type: to indicate if the result is production, a rework or scrap. It is needed to configure at least one Scrap result for each Production type.
    1. Press to insert the new result. Repeat this action for each new result to add.
    2. When all the changes have been done, press the button.

NOTE: Please see Results configuration for more information.

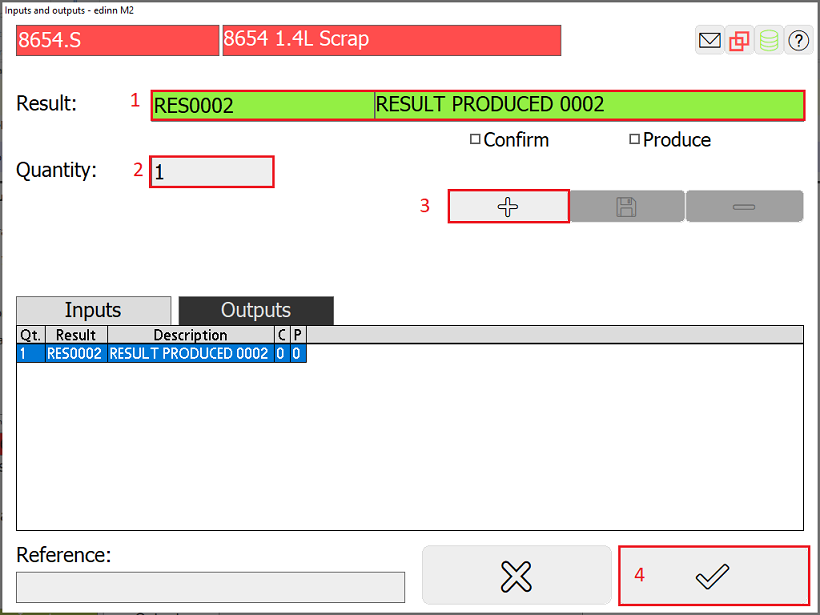

Paso 3. I/O Relation between a bad and a production result

Every scrap or rework result must be related, through inputs and outputs, with its production equivalent for the system to be able to correctly calculate the good quantity produced.

For this, once you have create the result of Production type, the bad result (scrap or rework), select the bad result that you need to relate and click on the Inputs / Outputs button (I/O).

From that moment:

    1. Select the "father" result that you need to relate the bad result with.
    2. Type the quantity that is consumed of "father" results every time a bad result is produced.
    3. Insert the relation in the Inputs list.
    4. Save the change.

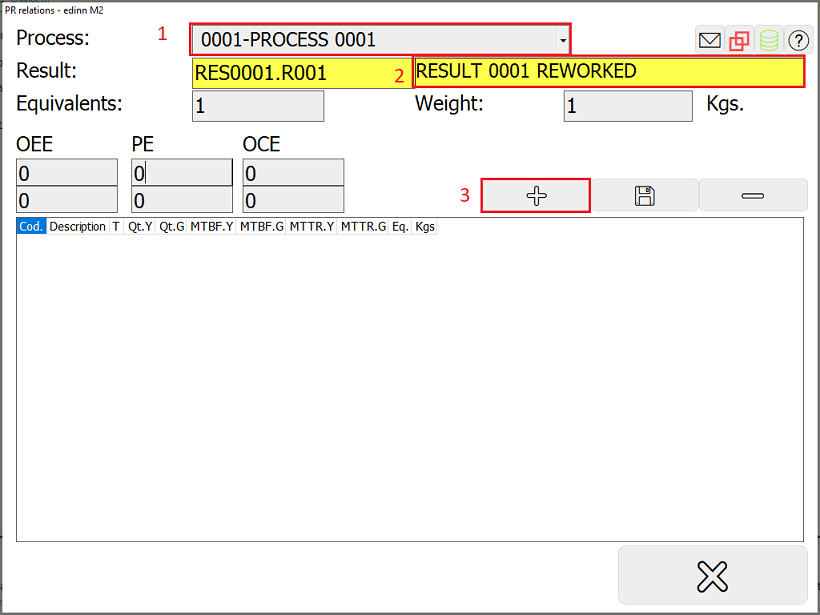

Step 4. (OPTIONAL) PR relation

Perform this step only if you need the new result to have different equivalents, weight or objectives (in general, the parameters configurable in this window as indicated below) when produced in different processes.

    1. Click on the button from the Main Window of the Terminal.
    2. Select PR relation in the CLICK TO CONFIGURE dropdown.

Relate the result created with a process following these steps:

    1. Process: choose the process to which the created result belongs.
    2. Result: press <CLICK HERE> and choose a result among the availables.
    3. Press to insert the new result. Repeat this action for each new result to add.

Step 5. PSR Relation

Until this moment, you have created the result in the general directory of results and, optionally (in step 3) you have establised some particular characteristics for this result in some specific processes. However, the result cannot yet be used by the users. For the users to be able to use this result, it must be related with a process and a status.

For more information, please see particularization through relations.

To perform this step, please see the document PSR relations configuration.
