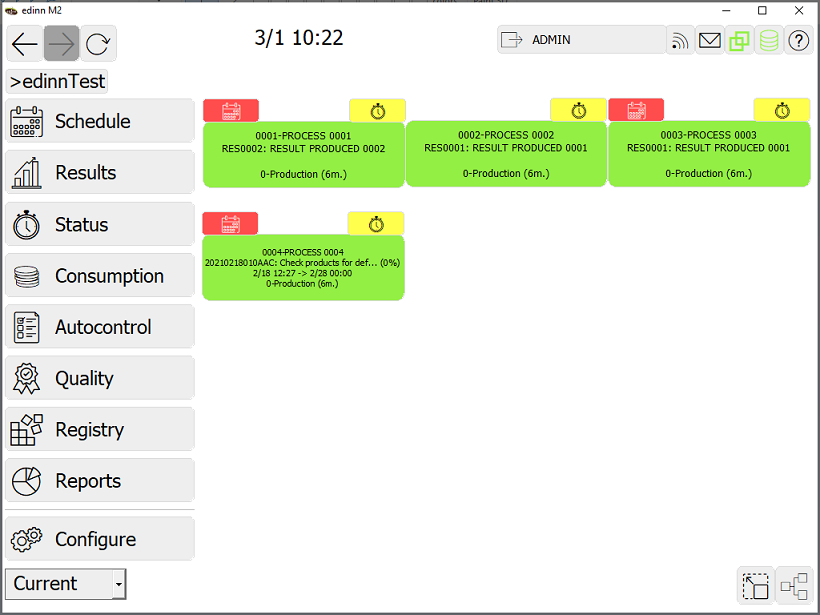

In the Main Area of the Main Window we have the following:

Each of these boxes represent an area, by clicking each box you will see the processes that compose that area. In the upper part of each kind of box (area and process), you will see different kind of icons which represent alerts. Some areas could not show alerts if they do not have work orders in process, see the Scheduled option in the Areas configuration for more information.

AREA/PROCESS DETAILS:

There are 6 types of little buttons, corresponding to alerts, surrounding each process or area box:

    • : There are tasks or orders that are about to be delayed (yellow) or are definitely delayed (red).
    • : Results are expected to be generated.
    • : There are not justified statuses.
    • : There is an excessive consumption that requires justification.
    • : There are pending autocontrol tasks.
    • : Quality (SPC) data must be captured.

NOTE: except for the alert of delayed tasks or orders, alerts of areas will only be shown aggregating the alerts of the processes which are working in tasks or work orders of that area.

PROCESSES DETAILS:

The area or process boxes can have little color buttons at the top:

This buttons can be in red (require urgent action) or yellow (require action when there is not anything urgent to attend). If you click this button, it will take directly to the window where you can solve the issue.

In the upper part of the process' boxes, detailed information will be shown:

    • : is shown when there is any additional documentation or a different application relating to the process.
    • : ON /OFF button, is only shown when the user is allowed to indicate to the system that this process is working or stopped. In the case of automatic processes, this button will appear if the process has an On/Off signal in the monitor. This information will be validated by the system and not accepted or even deleted if incorrect.
    • : here you can assign resources, also know as IN&OUT. For more information, please see: "Assign personnel and team window"
