In [Click to configure] select [Statuses]. Levels allow to organize statuses grouping them by desired criteria. Thus, different statuses may belong to the same category. This has to be headed by a status of the type Title.

To organize statuses in different levels, please follow these steps:

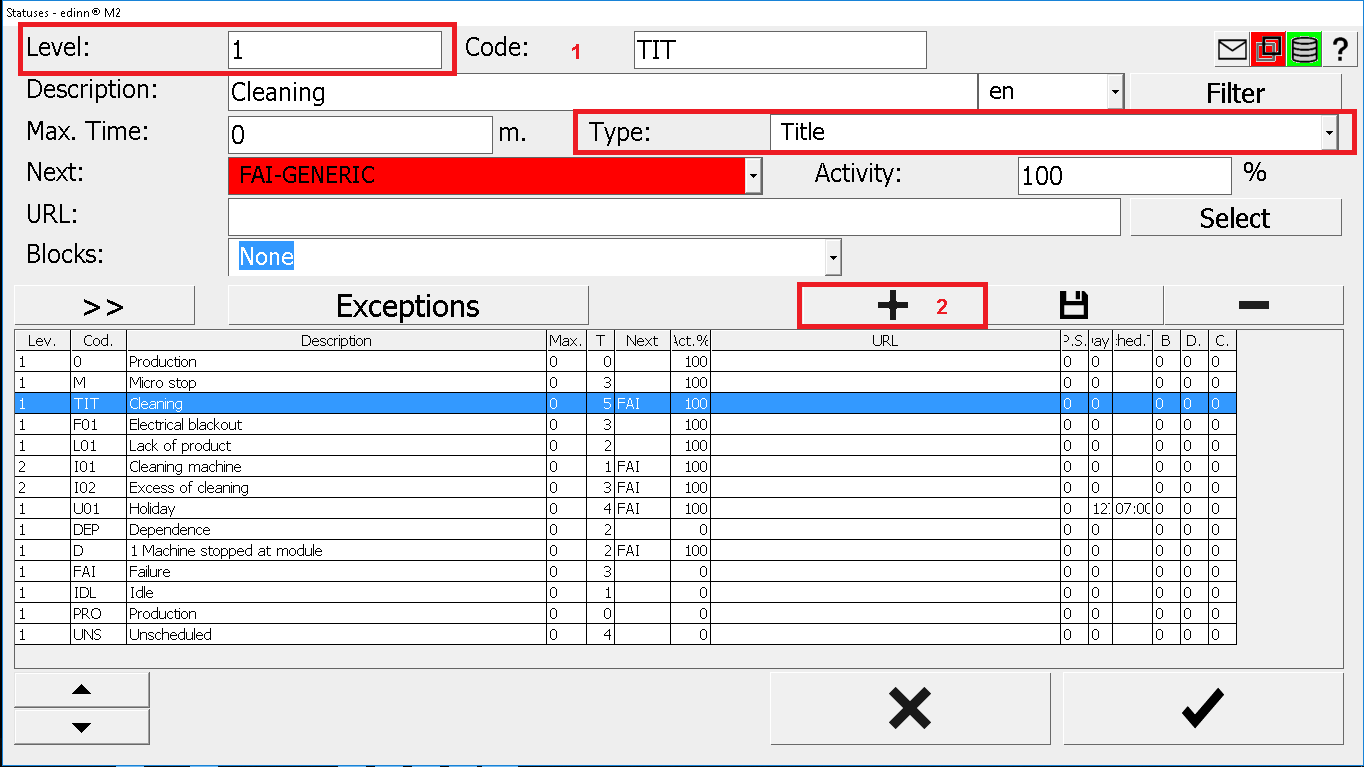

Step 1. Create or select a status of the type Title

This will be the container status, that is why it has to be level: 1 and Type: Title. Once you fill the necessary fields, press the Add button () to insert the new status in the table.

In the following example, we created a status called Cleaning. This status is meant to group different statuses related to the cleaning of the machines.



Step 2. Configure the subordinate statuses

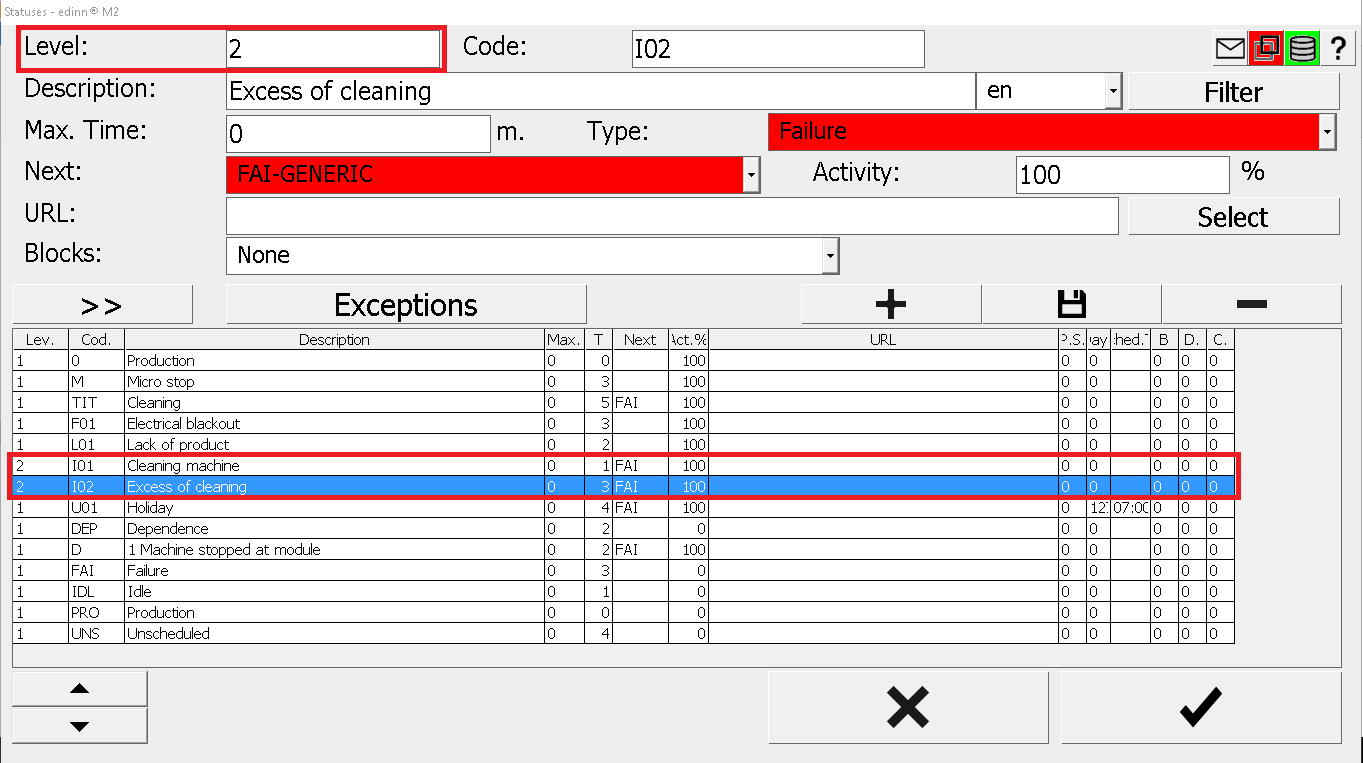

    1. Level: For each status, indicate its level. You can configure levels from 1 to 3. In the following example we selected level 2 for the statuses Cleaning machine and Excess of cleaning, as we want to subordinate those statuses to the status Cleaning.

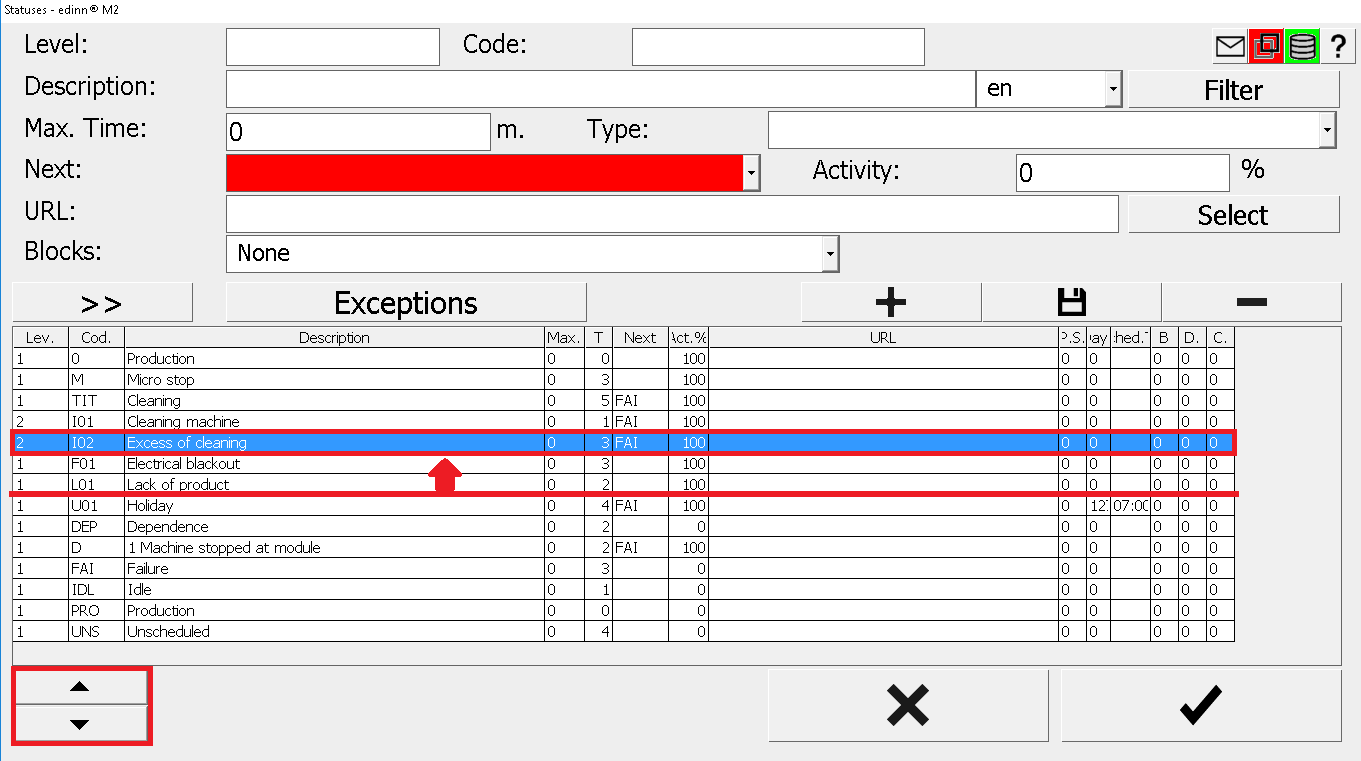

    1. Put each subordinate status on the positions below the title. To do so, select the status on the table and use the up and down arrow buttons located at the bottom left part of the screen.
