In this procedure, the steps to schedule statuses for a specific process will be detailed:

Step 1: PSR relations Configuration

    1. Click on the button from the Main Window of the Terminal.
    2. Select PSR relations in the CLICK TO CONFIGURE dropdown.

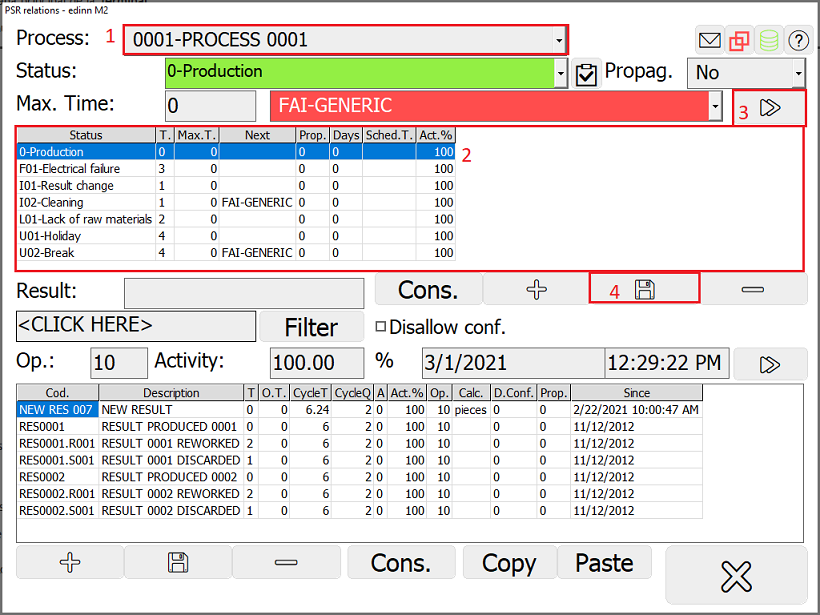

Step 2. Fill the fields

    1. Select the process for which you want to configure the status.
    2. Select the status to schedule from the table.
    3. Press the         button to show advanced configuration:
    4. Select the days and time for the status to be launched.
    5. Press the button to insert the new changes.

Examples:

    • Status “WEEKEND”: launched on Fridays at 20:00.
    • Status "END OF THE DAY”: launched on Monday, Tuesday, Wednesday and Thursday at 20:00.

WARNING: take care to not plan two status for the same period.
