Sometimes, you may need to configure different overlapped shifts if different processes start and/or end at different times in the morning, evening or night. In order to do so, firstly you will need to create the shifts, assigning them the corresponding processes using exceptions. If you try to create overlapped shifts, a warning message will show, you will have to confirm the action to procede. If you need to know how to create or modify shifts, please check: Shifts.

    1. Once shifts have been created, select one of them from the table and click the [Exceptions] button:

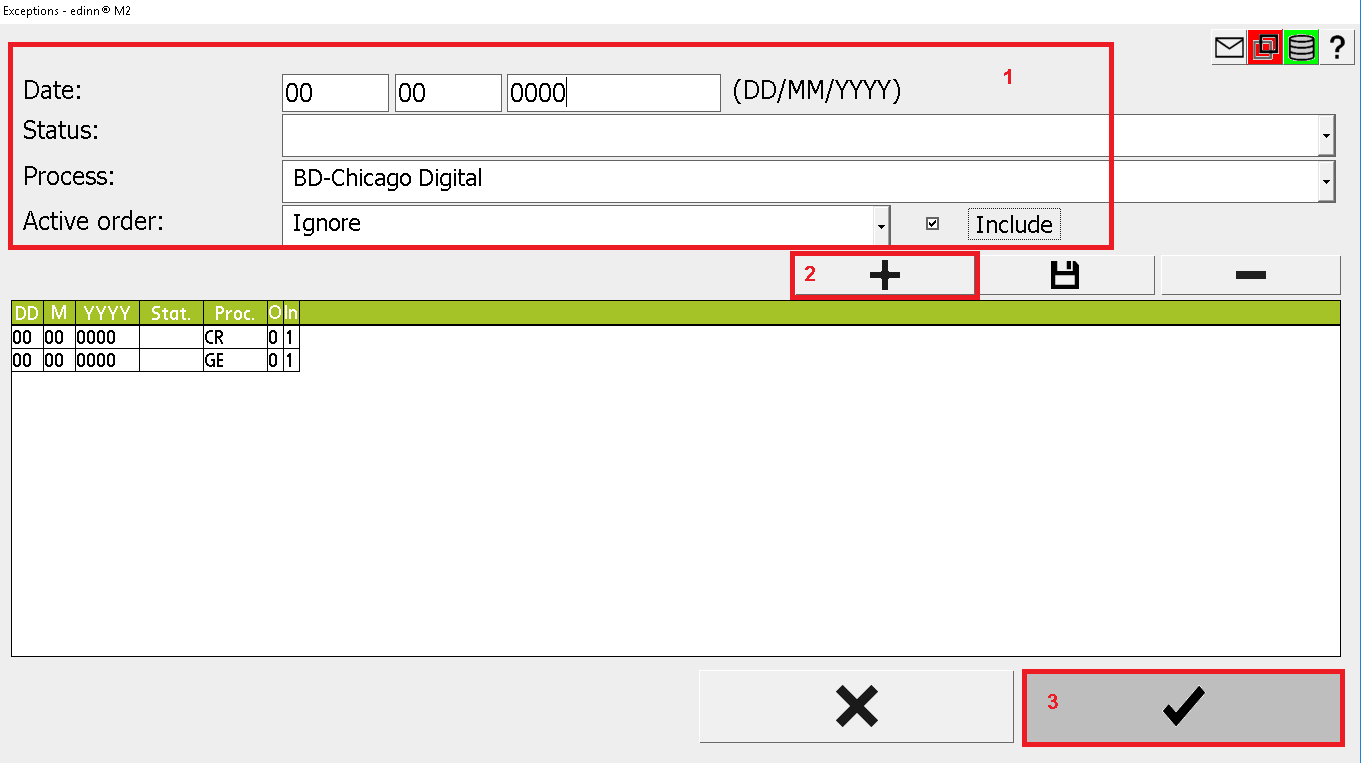

    1. For each process you need to include, fill the fields in the upper part of the window (1) and click to assign the process to this shift (2):
    • Date:  Exception date. We can use zeros as a wildcard. Examples:
      • Indicating 00/00/000 means everyday. You probably want to use this option.
      • Indicating 00/08/0000 means every august of every year.
      • Indicating 01/05/0000 means every May 1st of every year.
    • Status: useful to indicate an exception on certain statuses. It won't be necessary in this case.
    • Process: Select the process that you want to include in this shift.
    • Active order: useful to indicate exceptions when there is no active order. Select Ignore.
    • Include: Indicates if the exception is inclusive or exclusive. If not marked, it is an exception. If it is marked: it is an inclusion. Therefore, you need to mark it.
    1. Press to confirm the changes(3):

    1. Follow the steps again to include the corresponding processes to the remaining shifts.
