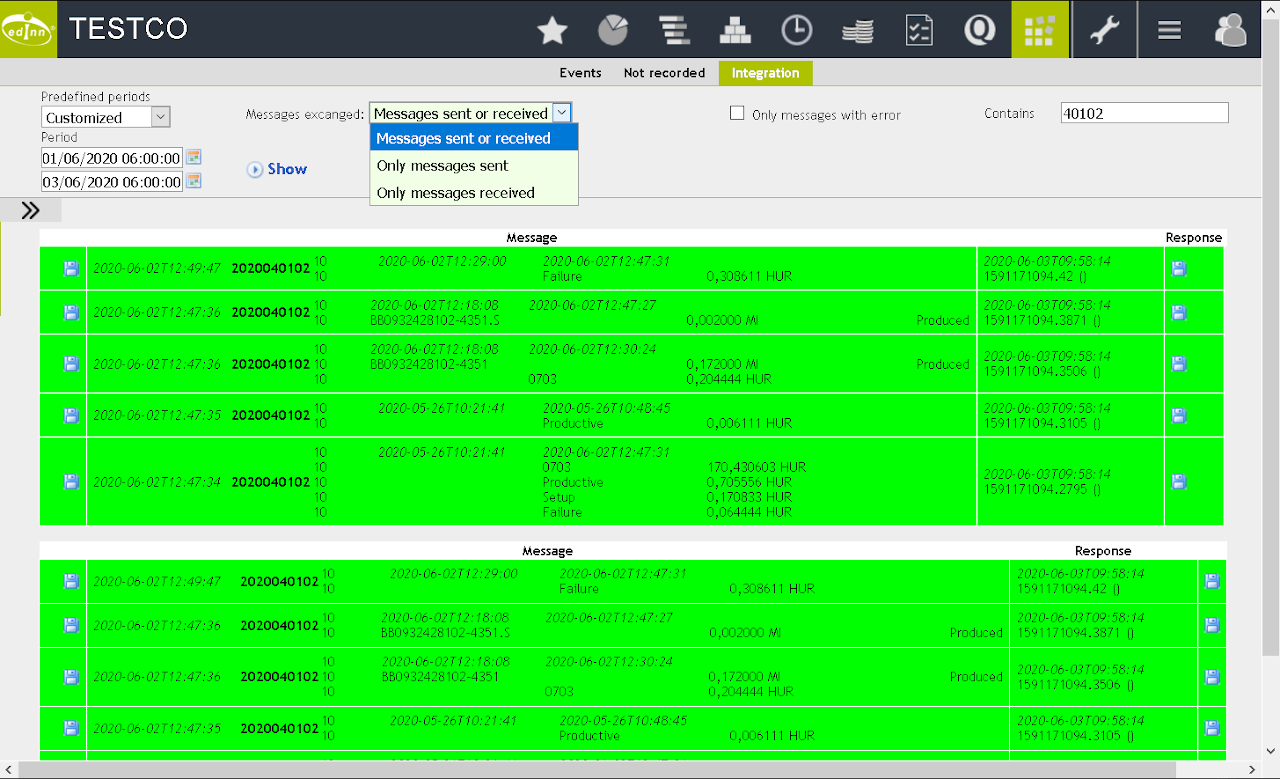

This report shows the summary of the messages that edinn exchanges with other software.

The colors of the records indicate:

    • Green: Messages received and processed correctly.
    • Orange: Messages with error.
    • Gray: Messages that are being sent (only for messages sent from edinn).
    • Yellow: Messages returned with a timeout error (only for messages sent from edinn). These messages can be automatically forwarded from edinn. Automatic resending can be configured in the server configuration.

There is a disk icon before the message with which you can show the whole XML message. There is also a disk icon after the response with wihch you can show the whole response XML message.

You can manually resend a returned message with error (oranges) by clicking on the resend icon.

Selectors are:

    • Messages exchanged:
      • Messages sent or received: Shows all messages both sent and reveived.
      • Only messages sent: Shows the messages sent from edinn to the connected software.
      • Only messages received: Shows the messages sent from the connected software and received by edinn.
    • Only messages with error: Shows only the messages returned with an error.
    • Contains: Shows only the messages containig the text specified.
    • Please see: "Common aspects" for information about the other selectors.
